Zinc Plated All Threaded Rod with Hot Galvanized

Rod threaded zinc fasteners are widely used in construction, industrial, and automotive applications due to their exceptional corrosion resistance and durability. These fasteners are made from high-quality steel rods coated with a layer of zinc through a process known as zinc plating, which provides protection against rust and corrosion, making them ideal for outdoor and high-moisture environments.

Commodity name： Zinc Plated All Threaded Rod with Hot Galvanized

Category:

Threaded rod /Full thread stud/Thread bar

Email:

cindy@hdwxfasteners.com

Get Quote

Also Like

Return to List

DESCRIPTION

Fully threaded rod

Name	Fully threaded rod
Material	Carbon steel/stainless steel
Grade	4.8 /6.8 /8.8 /10.9/ 12.9
Thread	Full thread
Color	White zinc/blue and white zinc/black/yellow zinc/natural color
Model number	M6-M30/1/4"-2"
Length	1000mm/2000mm/3000mm/Customizable
Packaging	Small bundle on tray

Hot dip galvanized high strength steel gradeHDG threaded rod

Zinc Plated All Threaded Rod with Hot Galvanized

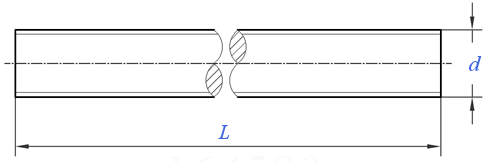

Standard DIN975-1986 tooth strip
Unit of measurement: mm								3D drawingWeight calculation Calculation of arithmetic progress difference Correct the error
Thread size d		M2	M2.5	M3	(M3.5)	M4	M5	M6	M8	M10	M12	(M14)	M16	(M18)
P	Thick teeth	0.4	0.45	0.5	0.6	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5
	Fine teeth	/	/	/	/	/	/	/	1	1.25	1.25	1.5	1.5	1.5
	Fine teeth	/	/	/	/	/	/	/	/	1	1.5	/	/	/
L	±10	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Thousand pieces of weight (steel)≈kg		18.7	30	44	60	78	124	177	319	500	725	970	1330	1650
Thread size d		M20	(M22)	M24	(M27)	M30	(M33)	M36	(M39)	M42	(M45)	M48	(M52)
P	Thick teeth	2.5	2.5	3	3	3.5	3.5	4	4	4.5	4.5	5	5
	Fine teeth	1.5	1.5	2	2	2	2	3	3	3	3	3	3
	Fine teeth	/	/	/	/	/	/	/	/	/	/	/	/
L	±10	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Thousand pieces of weight (steel)≈kg		2080	2540	3000	3850	4750	5900	6900	8200	9400	11000	12400	14700

Introduction to Rod Threaded Zinc

One of the key advantages of rod threaded zinc fasteners is their ability to withstand harsh weather conditions and corrosive elements. The zinc plating acts as a barrier, preventing moisture and oxygen from reaching the underlying steel, thereby reducing the risk of rust and corrosion. This corrosion resistance extends the lifespan of the fasteners and ensures reliable performance over an extended period.

In addition to their corrosion resistance, rod threaded zinc fasteners are known for their high strength and durability. The steel rod core provides excellent tensile strength, while the zinc coating enhances the fasteners’ resistance to abrasion and wear. This combination of strength and corrosion resistance makes rod threaded zinc fasteners suitable for a wide range of applications where reliability and longevity are essential.

Furthermore, the threaded design of these fasteners allows for easy installation and removal, making them convenient to use in various construction and repair projects. The threads ensure a secure and tight fit when connecting components or structures, providing stability and support in load-bearing applications.

Rod threaded zinc fasteners are available in various sizes and configurations to suit different project requirements. Whether you need bolts, screws, or studs, there is a rod threaded zinc fastener to meet your specific needs. Additionally, the affordability of these fasteners makes them a cost-effective solution for projects that require reliable and durable fastening solutions.

Zinc Plated All Threaded Rod with Hot Galvanized
