High Strength HDG Carriage Bolt DIN603

Carriage bolt, also known as carriage screw or carriage screw, is a common fastener, mainly used to connect and fix carriages or other similar vehicles.Due to its unique structure and wide range of applications, carriage bolts have a variety of classifications and uses.This article will introduce the classification and use of carriage bolts in detail.

Commodity name： High Strength HDG Carriage Bolt DIN603

Category:

Carriage bolt

Email:

cindy@hdwxfasteners.com

Get Quote

Also Like

Return to List

DESCRIPTION

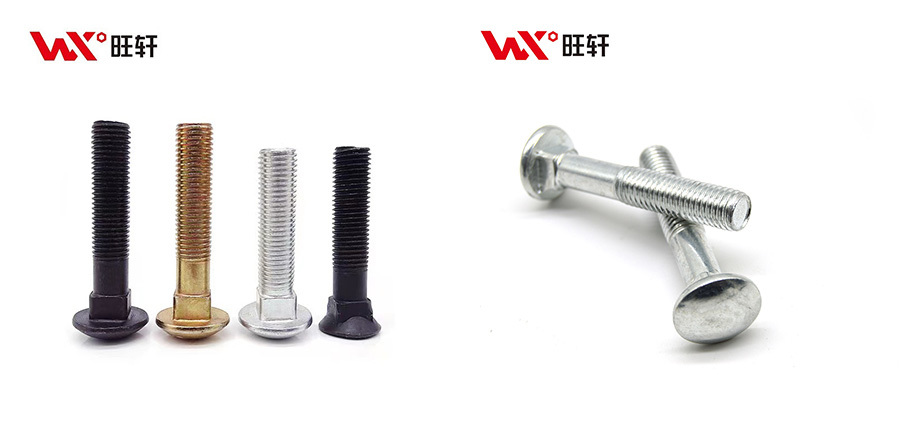

Carriage bolt

Name	Carriage bolt
Material	Carbon steel/stainless steel
Grade	4.8 /6.8 /8.8 /10.9/ 12.9
Thread	Full thread/half bolt
Color	White zinc/blue and white zinc/black/yellow zinc/natural color
Model number	M6-M24/1/4"-1"
Length	15mm-300mm
Packaging	Bag put tray /box put tray /can be customized

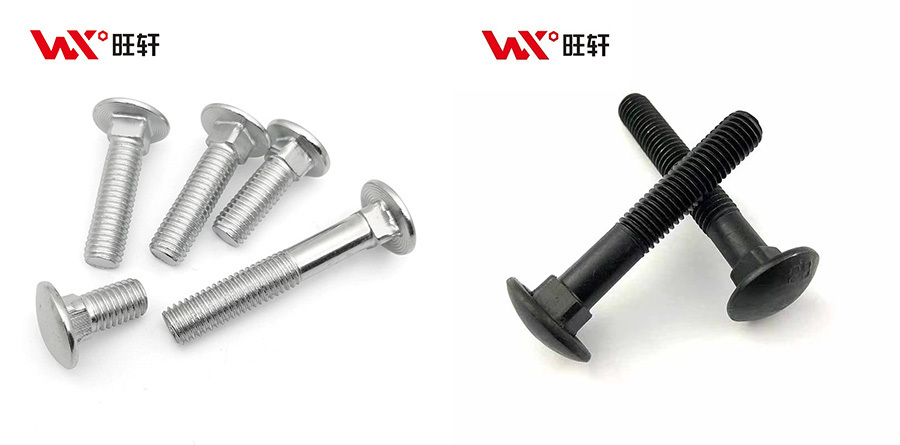

High Strength HDG Carriage Bolt

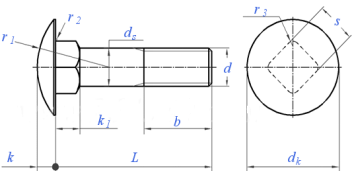

Semi-circular head square neck bolt DIN 603 - 2017
Unit of measurement: mm					3D drawing Weight calculation Calculation of arithmetic progress difference Correct the error
Thread specifications d		M5	M6	M8	M10	M12	M16	M20
P	Pitch	0.8	1	1.25	1.5	1.75	2	2.5
b	L≤125	16	18	22	26	30	38	46
	125＜L≤200	22	24	28	32	36	44	52
	L＞200	/	/	41	45	49	57	65
d_k	Max	13.55	16.55	20.65	24.65	30.65	38.8	46.8
d_k	Min	12.45	15.45	19.35	23.35	29.35	37.2	45.2
d_s	Max	5	6	8	10	12	16	20
d_s	Min	4.52	5.52	7.42	9.42	11.3	15.3	19.16
k₁	Max	4.1	4.6	5.6	6.6	8.75	12.9	15.9
k₁	Min	2.9	3.4	4.4	5.4	7.25	11.1	14.1
k	Max	3.3	3.88	4.88	5.38	6.95	8.95	11.05
k	Min	2.7	3.12	4.12	4.62	6.05	8.05	9.95
r₁	≈	10.7	12.6	16	19.2	24.1	29.3	33.9
r₂	Max	0.5	0.5	0.5	0.5	1	1	1
r₃	Max	0.75	0.9	1.2	1.5	1.8	2.4	3
s	Max	5.48	6.48	8.58	10.58	12.7	16.7	20.84
s	Min	4.52	5.52	7.42	9.42	11.3	15.3	19.16
One thousand pieces of steel weight≈kg		-	-	-	-	-	-	-
Thread length b		-	-	-	-	-	-	-

Classification of carriage bolts

1. Classified by head shape

(1) Flat-head carriage bolts: the head is flat, and it is commonly used in joints that need to be hidden or unobtrusive.

(2) Round-head carriage bolts: the head is a round head, which is commonly used in joints that need to withstand greater shear forces.

(3) Flat-head carriage bolts: the head is a flat head, which is suitable for connections where space is limited.

2. Classification by material

(1) Carbon steel carriage bolts: made of carbon steel material, it has good strength and corrosion resistance.

(2) Stainless steel carriage bolts: made of stainless steel material, it has high corrosion resistance and aesthetics.

Use of carriage bolts

1. Fixing and connecting functions: The most basic function of carriage bolts is to fix and connect the various parts of the carriage or other similar structures.By fastening different parts together, the stability and safety of the carriage can be ensured.

2. Carrying weight: Since carriage bolts can withstand a certain weight, they are usually used to carry heavier components or structures.For example, the frame, wheels and other parts of a carriage can be fastened with carriage bolts.

3. Prevent loosening and falling off: The carriage bolts are designed to prevent the connected parts from loosening or falling off.Through preload and friction, the carriage bolts can maintain the tightness of the connection, thereby ensuring the safe use of the carriage.
